AMBULANCE SPECIFICATION

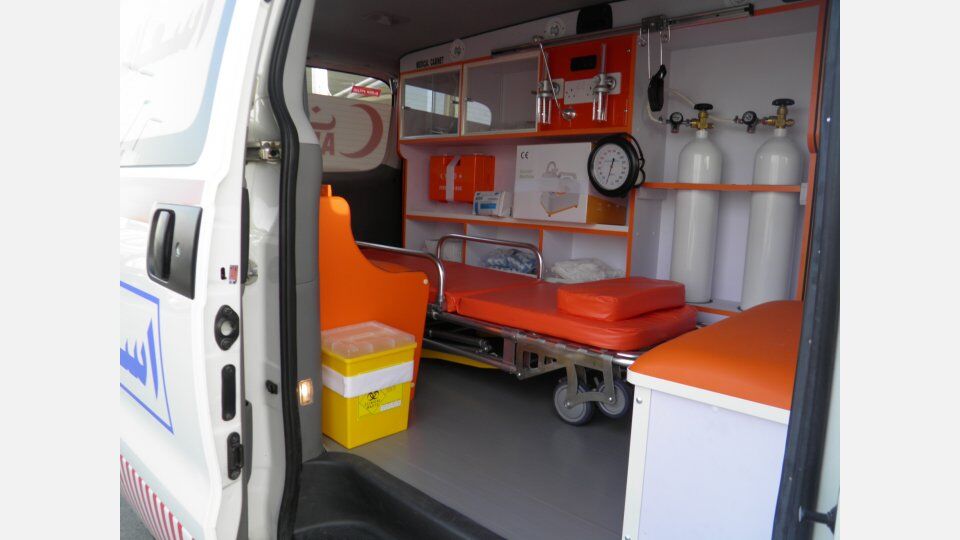

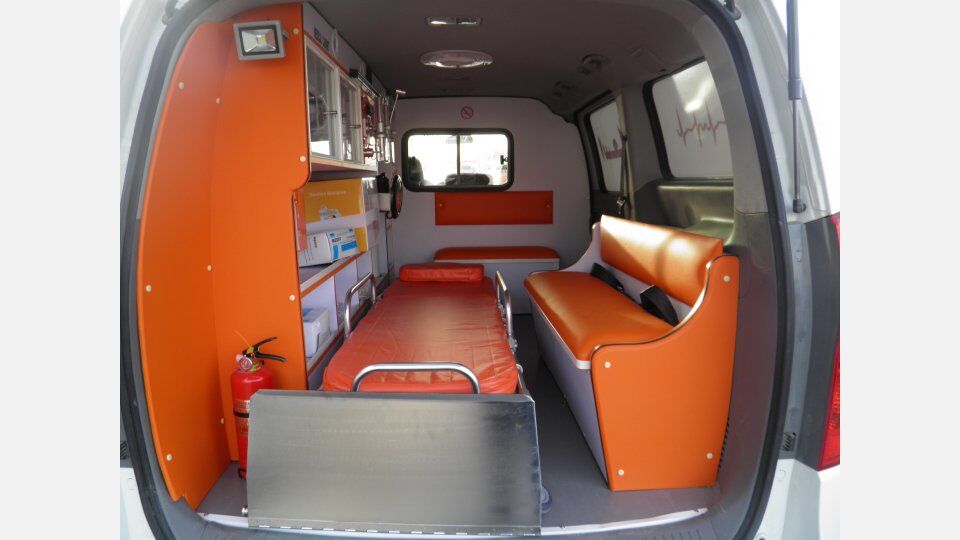

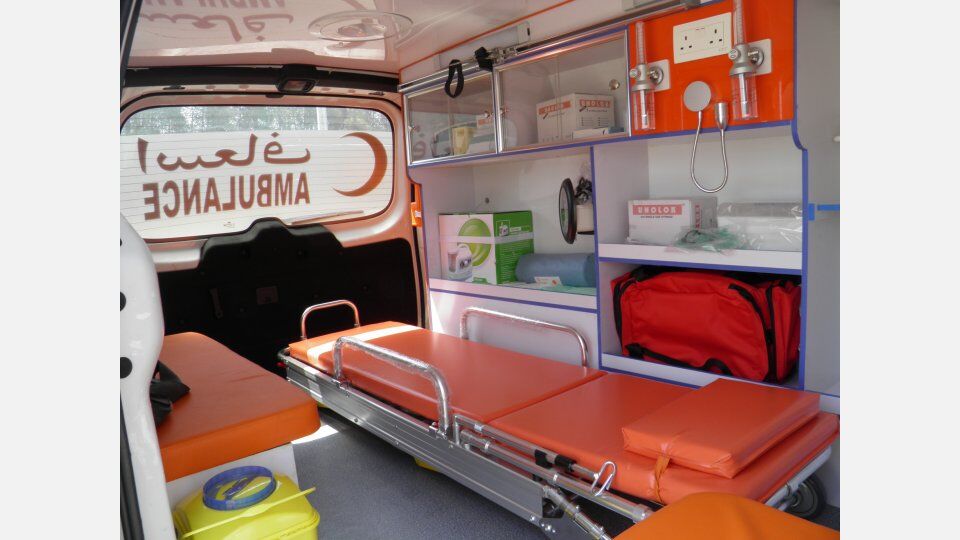

Interior:

• Aluminium composite panels for interior walls, side panels and roofs in the patient compartment. Floor:
  18mm water proof plywood coated with vinyl floor with raised edges, antistatic, anti-slippery and easy to clean.

Partition:

• Bulk head 18mm PVC intecel sheet partition between driver and patient compartment with a sliding window door.

Insulation:

• Polyurethane Thermal Insulation in the patient compartment to prevent from heat and cold Cabinets:
  • Made of PVC intecel plywood which is waterproof and heat resistance
  • Main cabinet for medical equipment and material storage at the left side wall and oxygen storage compartment integrated into the same cabinet near to partition wall left side.
  • Acrylic sliding doors with aluminium sliding channels at the necessary places

Windows:

• All windows are tinted with frosted film Seats:
• Doctor or EMS Seat-mounted in the original floor rails, armrest, headrest and adjustable backrest 2 point seat belt
• Squad bench or an attendant seat at the right side with backrest and 2 point safety belts integrated, underneath storage box with open top Grab handle:
• One small handle mounted on the rear entrance door at the right side

IV Hook:

• Installed above the left side cabinet with movable IV holder near to patient Central Oxygen System:
• Heat resistance Oxygen hoses connection from oxygen cylinder to quick connects – 2 no’s 10L Oxygen cylinders
• 2 no’s Flowmeter with a humidifier
• 2 no’s Regulator with pressure gauge
• 2 no’s of Oxygen outlets or quick-connect Air-condition and ventilation:
• 12V ventilation fan with integrated light installed at the rear side roof
• Separate AC unit wall-mounted at the front side partition inpatient compartment Electrical equipment:
• Control panel box with fuse
• 220 V socket
• 12V socket inpatient compartment
• Inverter

Interior lighting:

• LED ceiling light

Exterior Lighting:

• LED Light bar siren 100W mounted at the front roof top Red and amber
• Siren control unit with microphone installed on the driver compartment
• 2 no’s roof f beacon lights mounted in the rear area
• Halogen lights at loading entrance rear side

Medical Equipment

• Main stretcher CE Approved
• Foldable stretcher
• Portable suction unit
• Wall mounted BP Apparatus
• Stethescope
• Ambu bag
• Syrringes
• Face mask
• First aid kit for 50 persons
• First aid kit for 5 and 3 persons
• Syrringes 5 ml and 3 ml
• Cervical collar
• Face mask
• Sharp container
• Hand sanitizer
• Guaza swab large and small
• IV Cannulla
• Map reading light
• Disposible bed sheet
• Gloves
• Ramp for the stretcher
• Cotton Roll
• Rescue hammer
• Fire extinguisher
